Best Intel Z790 motherboard

Find the best overclockable motherboard for an Intel 13th-gen Raptor Lake CPU with our buying guide, from affordable DDR4 options to high-end DDR5 models.

On the lookout for the best Z790 motherboard to partner with one of Intel’s latest 13th-gen Raptor Lake CPUs? Then you’ve come to the right place – our guide to the best Z790 motherboards takes you through a range of options to suit all budgets, from affordable PCBs that use DDR4 memory to premium DDR5 models with lights agogo.

At Custom PC, we’ve been reviewing and overclocking the latest motherboards since we first launched in 2003, so we know exactly what to look for in terms of layout, features, performance, and overclocking abilities.

As it has plenty of overclocking headroom, we use a Core i5-13600K to test Z790 motherboards – it has 14 cores and 20 threads, making it a suitable choice for gamers and content creators alike. When reviewing a motherboard, we look at VRM temperatures, as well as SSD temperatures using any supplied heatsinks, and we also take a good look at the layout and feature set of each board.

Intel’s Z790 chipset sits at the top of Intel’s range for LGA1700 motherboards, and it’s the only chipset that enables you to overclock CPUs with an unlocked multiplier. This is great for CPUs such as the Core i5-13600K, as we’ve found we can push this all this CPU’s cores up to 5.7GHz, giving you a 600MHz advantage over the 5.1GHz stock speed boost clock.

Here are the best Intel Z790 motherboards:

1. ASRock Z790 PG Lightning D4

The best budget DDR4 Z790 motherboard is the ASRock Z790 PG Lightning D4.

ASRock Z790 PG Lightning D4 top down view

If you want a Raptor Lake CPU but don’t want to spend much more than $200 on a motherboard, then the ASRock Z790 PG Lighting D4 is a basic, but solid option for a Z790 system. It not only has a very affordable price, but it also uses DDR4 memory, which reduces your total upgrade cost.

It’s not bursting with features, but it covers the essentials without sacrificing performance. Its Cinebench multi-threaded score of 24,159 with our Core i5-13600K test chip is right on the money, and it’s quite happy to overclock this CPU’s P-Cores all the way to 5.7GHz as well. Read our full review of the ASRock Z790 PG Lighting D4 to get the full story on this motherboard.

Pros

  • Great price
  • Happy to overclock a Core i5-13600K
  • DDR4 memory support

Cons

  • Limited features
  • No Wi-Fi
  • Mediocre audio

ASRock Z790 PG Lightning D4 specs:

Dimensions (mm) 305 x 244
Chipset Intel Z790
CPU socket Intel LGA1700
Memory support 4 slots: max 128 GB DDR4 (up to 5333MHz)
Expansion slots One 16x PCIe 5, one 16x PCIe 4, three 1x PCIe 3
Sound 8-channel Realtek ALC897
Networking 1 x Realtek 2.5 Gigabit LAN
Cooling Seven 4-pin fan headers, VRM heatsinks, M.2 heatsink
Ports 4 x SATA 6Gbps, 4 x M.2 PCIe, 1 x USB 3.2 Gen 2 Type-A, 5 x USB 3, 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3 Type-C header, 1 x LAN, 3 x surround audio out

Price: Expect to pay $219 USD / £219 GBP.

2. Asus ROG Maximus Z790 Hero

The best Z790 motherboard is the Asus Maximus Z790 Hero.

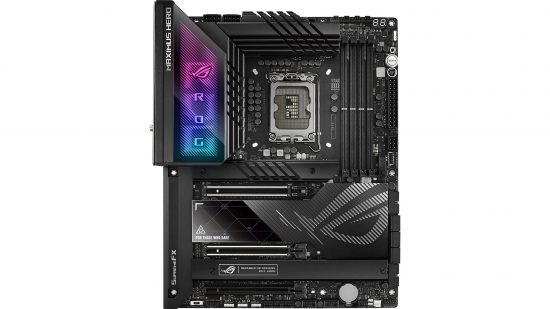

Asus ROG Maximus Z790 Hero motherboard top down view

This all singing all dancing Z790 motherboard gives you all the best that Intel’s Z790 chipset has to offer, such as Thunderbolt 4, PCIe 5 graphics and M.2 support, with a feature-packed PCB and accessory box. Its onboard audio is excellent, and it comes with a host of enthusiast features, including water flow sensors, a thermal probe input for syncing your radiator fans with coolant temperature, as well as a 36W 4-pin header for water-cooling pumps.

The board is also equipped with a handy quick-release PCIe slot button, plus there are onboard power and reset buttons, an LED POST code display, USB BIOS FlashBack and a CMOS-clear button. It’s outrageously expensive, but the Maximus Z790 Hero is fantastic if you can afford it. Read our full review of the Asus ROG Maximus Z790 Hero for more information about this fancy Z790 motherboard.

Pros

  • Gorgeous looks
  • Amazing feature set
  • Excellent software and EFI

Cons

  • Expensive
  • Cheaper boards offer a lot of the same features

Asus Maximus Z790 Hero specs:

Dimensions (mm) 305 x 244
Chipset Intel Z790
CPU socket Intel LGA1700
Memory support 4 slots: max 128GB DDR5 (up to 7800MHz)
Expansion slots Two 16x PCIe 5, one 16x PCIe 4
Sound 8-channel ROG SupremeFX ALC4082
Networking 1 x Realtek 2.5 Gigabit LAN, 802.11ax Wi-Fi
Cooling Eight 4-pin fan headers, VRM heatsinks, M.2 heatsinks
Ports 6 x SATA 6Gbps, 1 x M.2 PCIe 5, 4 x M.2 PCIe 4,  5 x USB 3.2 Gen 2 Type-A, 4 x USB 3, 2 x Thunderbolt 4, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2×2 Type-C header, 1 x LAN, 3 x surround audio out

Price: Expect to pay $650 USD / £659 GBP.

3. ASRock Z790 PG Riptide

The best budget DDR5 Z790 motherboard is the ASRock Z790 PG Riptide.

ASRock Z790 PG Riptide top down view

If you want to jump on the DDR5 memory bandwagon and get support for the upcoming wave of super-fast PCIe 5 M.2 SSDs, all for under $250, then the ASRock Z790 PG Riptide is the for you. This affordable Z790 motherboard offers a PCIe 5 M.2 port, it overclocked our Core i5-13600K fine and it also gives you change from $250.

It doesn’t have the visual prowess of pricier boards, but its heatsinks are larger than those on the ASRock Z790 PG Lightning D4, which is ideal if you’re planning to use a Core i9 CPU. There’s also RGB lighting on the PCH heatsink and you get 3-pin and 4-pin RGB lighting headers. If you’re happy to splash out on new memory, this is a great budget buy. Read our full review of the ASRock Z790 PG Riptide for more detail.

  • Only costs $239
  • PCIe 5 M.2 port
  • Good overclocker

Cons

  • Mediocre audio
  • Cost of DDR5 memory
  • No Wi-Fi

ASRock Z790 PG Riptide specs:

Dimensions (mm) 305 x 244
Chipset Intel Z790
CPU socket Intel LGA1700
Memory support 4 slots: max 128 GB DDR5 (up to 6800MHz)
Expansion slots One 16x PCIe 5, one 16x PCIe 4, one 1x PCIe 3
Sound 8-channel Realtek ALC897
Networking 1 x Realtek 2.5 Gigabit LAN
Cooling Seven 4-pin fan headers, VRM heatsinks, M.2 heatsink
Ports 4 x SATA 6Gbps, 4 x M.2 PCI-E, 1 x USB 3.2 Gen 2 Type-A, 5 x USB 3, 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3 Type-C header, 1 x LAN, 3 x surround audio out

Price: Expect to pay $239 USD / £239 GBP

4. Asus ROG Strix Z790-A Gaming WiFi D4

The best all-round DDR4 Z790 motherboard is the Asus ROG Strix Z790-A Gaming WiFi D4.

Asus ROG Strix Z790-A Gaming WiFi D4 top down view

The Asus ROG Strix Z790-A Gaming WiFi D4 is arguably just as good-looking as the pricier ROG Maximus Z790 Hero, but costs nearly $300 less. What’s more, this Z790 motherboard has some of the features you usually get on pricier motherboards, including Asus’ quick-release PCIe slot button, double-sided SSD cooling for the top M.2 slot and USB 3.2 Gen 2×2 support for the onboard Type-C header.

You also get high-quality onboard audio from the Realtek ALC4080 codec, and this motherboard had no trouble overclocking our Core i5-13600K to 5.7GHz across all its cores either. There’s sadly no support for PCIe 5 SSDs, but it’s otherwise a great motherboard, and its support for DDR4 memory will save you some cash if you’re upgrading from an older system. Read our full review of the Asus ROG Strix Z790-A Gaming WiFi D4 for more detail.

Pros

  • Attractive design
  • Good feature set
  • DDR4 memory support

Cons

  • Still pricey
  • No tool-free M.2 heatsinks
  • No PCIe 5 M.2 support

Asus ROG Strix Z790-A Gaming WiFi D4 specs:

Dimensions (mm) 305 x 244
Chipset Intel Z790
CPU socket Intel LGA1700
Memory support 4 slots: max 128GB DDR4 (up to 5333MHz)
Expansion slots One 16x PCIe 5, two 16x PCIe 4, one 1x PCIe 3
Sound 8-channel Realtek ALC897
Networking 1 x Realtek 2.5 Gigabit LAN
Cooling Seven 4-pin fan headers, VRM heatsinks, M.2 heatsink
Ports 4 x SATA 6Gbps, 4 x M.2 PCIe 4, 1 x USB 3.2 Gen 2 Type-A, 5 x USB 3, 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3 Type-C header, 1 x LAN, 3 x surround audio out

Price: Expect to pay $400 USD / £388 GBP

That’s it for our current roundup of the best motherboards based on Intel’s Z790 chipset, but we’ll keep this guide regularly updated as we review more motherboards in the future, so keep an eye on it if there’s nothing that suits your needs at the moment.
